Expandable wire mesh installation:

1-Measure and cut expandable wire mesh approximately ½” shorter than wire length
to be protected. See Picture 1.

2-Slip wire mesh over wiring and connectors. It is not uncommon for slight fraying to
occur on the entry end if the wire mesh. This should not be cause for concern since
the heat shrink collars will cover this area. See picture 2.

3-Slip two ea heat shrink collars over wire mesh so that each collar over hangs each
end by approximately ¼”. Note: For Futaba connectors it will be necessary to slightly
expand the heat shrink collars by stretching slightly each collar before installation.
We have found that best results are achieved by inserting needle nose pliers into
heat shrink collars and expanding using light pressure. See Picture 3.

4-Apply heat to collars using heat gun or approved heat source heating collars evenly
on all sides. See picture 4 for finished installation.
Picture 1
Picture 2
Picture 3
Picture 4
Expandable Braided Wire Wrap
Black
FMP1108  $8.95
Red
FMP1106  $8.95
Blue
FMP1107 $8.95
Gray
FMP1113  $8.95
Geeen
FMP1110  $8.95
Yellow
FMP1109  $8.95
White
FMP1111  $8.95
Orange
FMP1112  $8.95

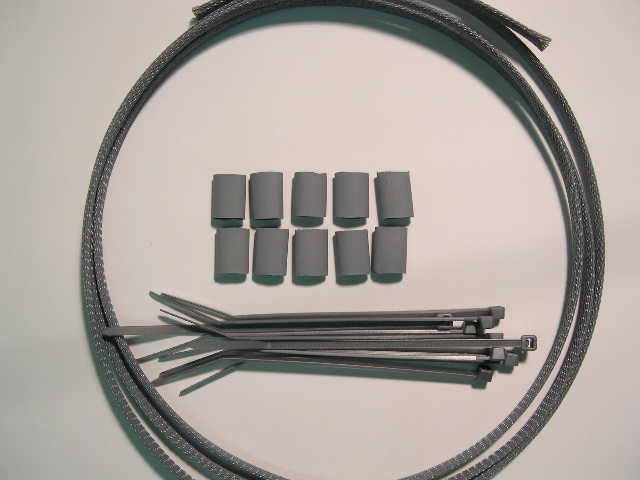

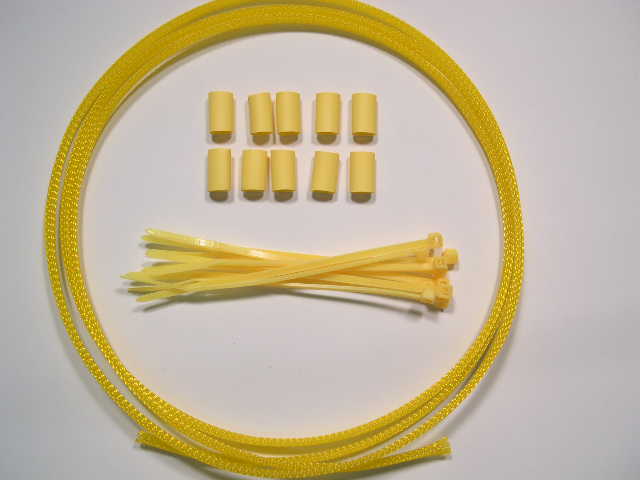

Braided wire protection sleeve kits now available from Fortune Model Products! Each kit contains 5
ft of braided wire protection sleeving and 10 color matching heat shrink collars. Available in
Black,Red,Blue,Yellow,Green,Orange and special heat resistant White. Special heat resistant

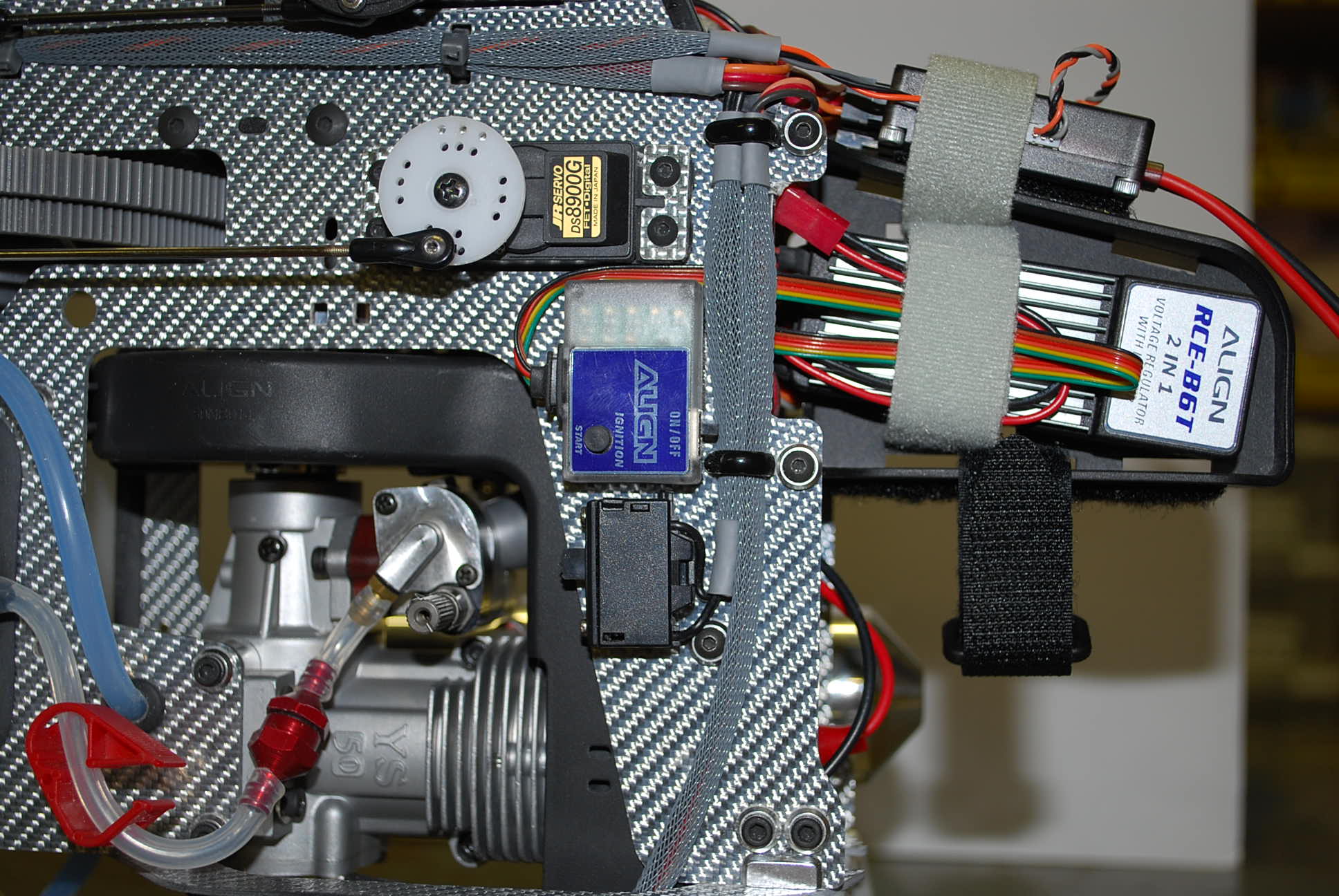

The perfect way to protect servo and other radio wiring from damage on plastic, G10 and carbon
fiber frames and radio trays. Can also be used to protect LiPo battery wiring and critical electronic
control unit wiring on turbine powered models and fuel lines,too.

FREE SHIPPING ON THESE ITEMS!!!!
Installation instructions:
